MULTI-STOREY LOADING · PRESTON
Superdeck Loading Platform
A retractable loading platform, one above the other up the building, so materials go straight to the floor that needs them.Retractable loading decks, one per floor.
At a glance
5,000 kg
Lifting capacity, every model
10,000 kg
Super duty model, on request
8.5 m
Long, in three widths
1 per floor
About 5 decks for a 5-storey building
- Retracts when not in use
- Delivers straight to the designated floor
- Widest deck is 4.2 m
MODELS
Three widths
Pick the width that fits your loads. Same length and capacity, up to 10,000 kg with the super duty model on request.Pick the width that fits your loads.
4.2 m wide
Model: Superdeck 4.2G
- Length
- 8,500 mm
- Width
- 4,200 mm
- Height
- 1,202 mm
- Capacity
- 5,000 kg
3.2 m wide
Model: Superdeck 3.2G
- Length
- 8,500 mm
- Width
- 3,200 mm
- Height
- 1,202 mm
- Capacity
- 5,000 kg
2.2 m wide
Model: Superdeck 2.2G
- Length
- 8,500 mm
- Width
- 2,200 mm
- Height
- 1,202 mm
- Capacity
- 5,000 kg
Where it's working

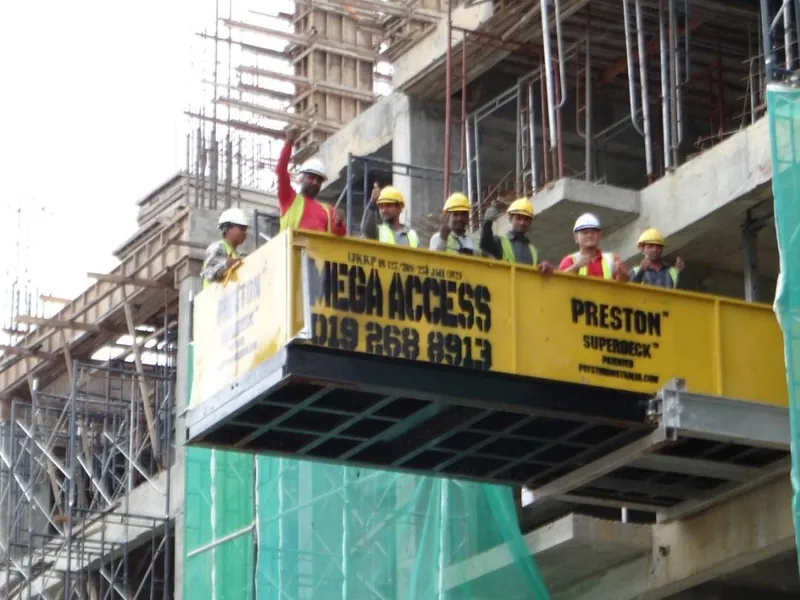

Johor · Tialoc

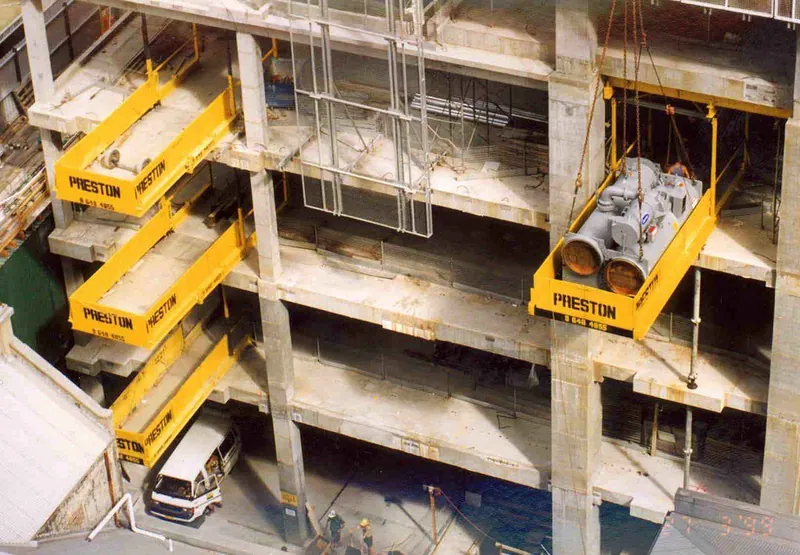

Superdeck · Stacked decks

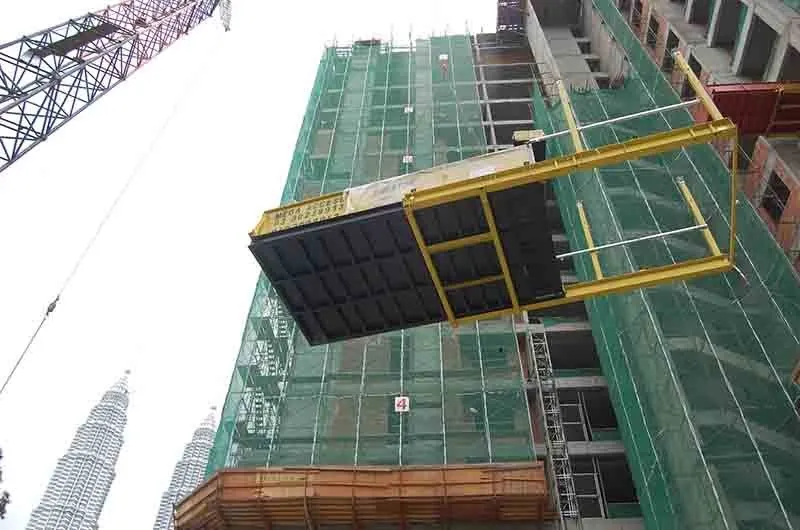

Kia Peng · Lifting in

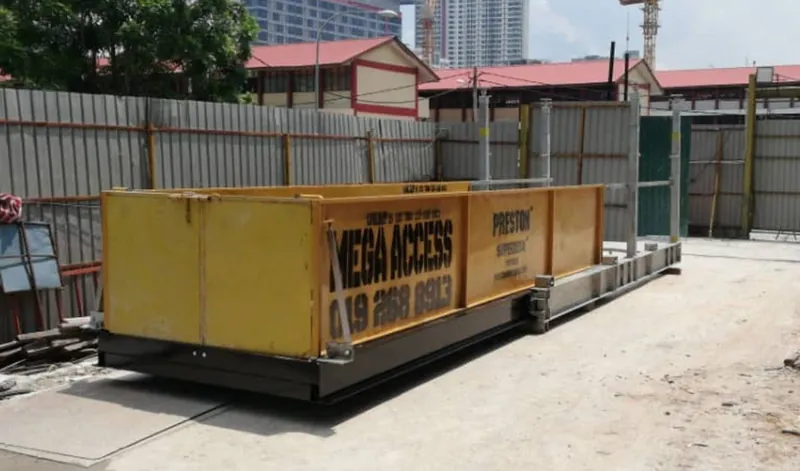

Superdeck · On site

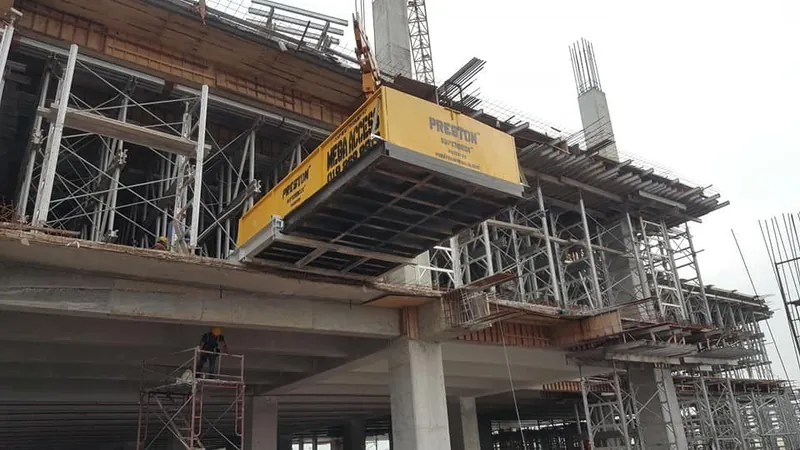

Superdeck · High-rise

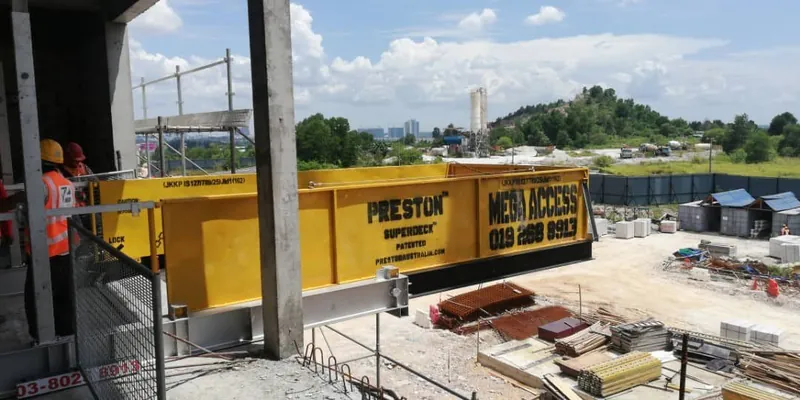

Superdeck · Extended

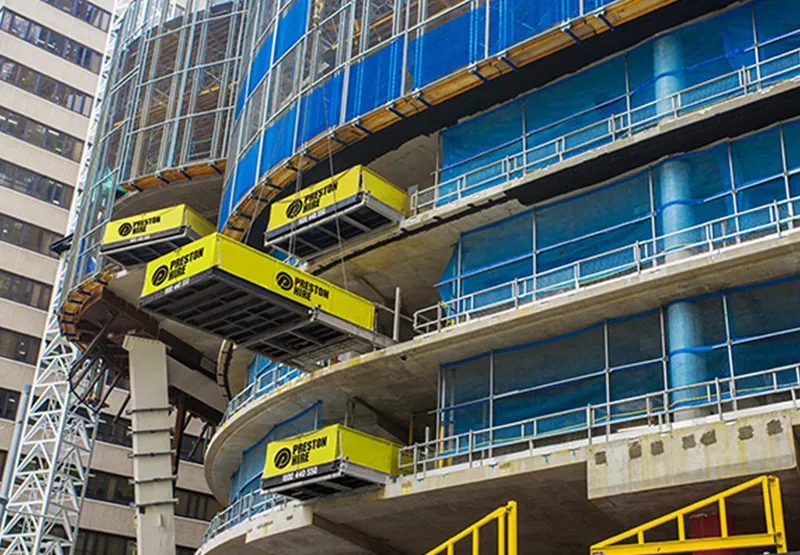

Superdeck · Deck view

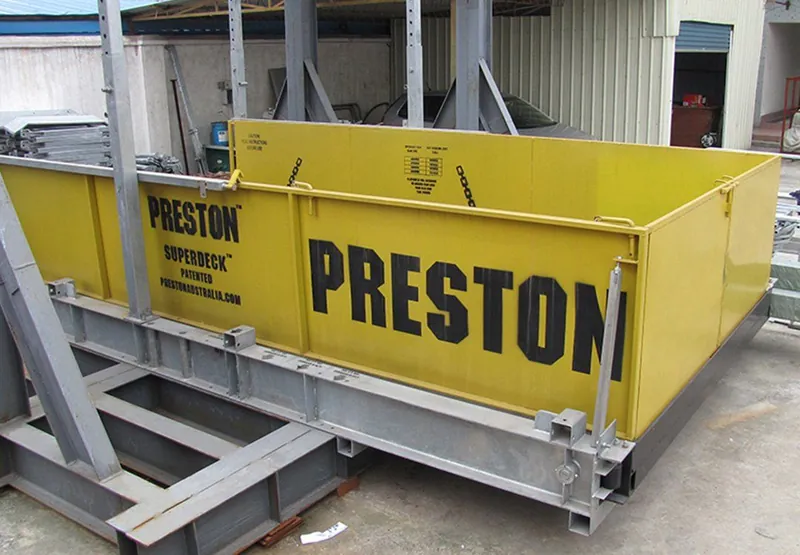

Superdeck · Ready
5.
Superdeck job photos on file
From past high-rise building sites.
ALSO AVAILABLE

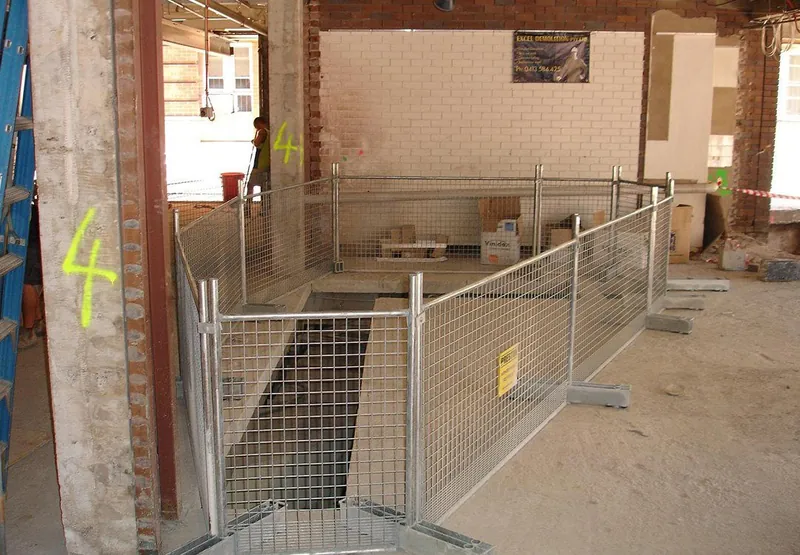

SuperBarrier
A temporary, self-supporting barrier for edge protection, site boundaries, or pedestrian and traffic control. Versatile and quick to install.
